AI infrastructure has changed quickly. What was once built around general-purpose GPU clusters is now shifting toward tightly integrated platforms designed for large models, high-throughput inference, and demanding HPC workloads. The move from NVIDIA A100 to H100 reflects that shift clearly.
The NVIDIA H100 8x 80GB SXM Server has become a strong option for organizations running AI at scale. It is widely used for large language models, inference, and data-intensive training because it combines dense GPU performance, fast memory, and efficient multi-GPU scaling in one system.
For companies scaling LLMs, faster training and inference directly improve time-to-market. Delays in AI infrastructure can slow model deployment and increase compute costs, which is why the H100 remains a serious option for teams that need production-ready AI performance at scale.
Key Takeaways:
- NVIDIA H100 8x 80GB SXM combines eight Hopper GPUs with 640GB HBM3 for large-scale AI and HPC workloads.
- Fourth-generation NVLink and NVSwitch deliver up to 900 GB/s GPU-to-GPU bandwidth for efficient multi-GPU scaling.
- H100 provides up to 9× faster AI training and up to 30× faster LLM inference than A100.
- Each GPU offers 80GB HBM3 and 3.35 TB/s memory bandwidth, reducing bottlenecks in data-intensive workloads.

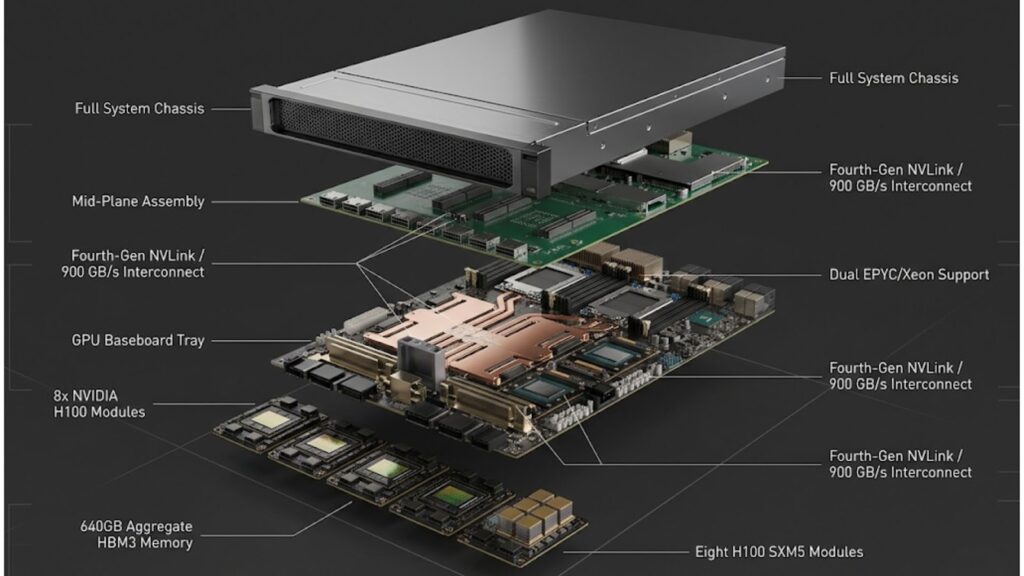

Overview of NVIDIA H100 8×80GB SXM Server
What Is the H100 SXM Server
The NVIDIA H100 8x 80GB SXM Server is an eight-GPU platform built around NVIDIA Hopper architecture. It is often deployed in HGX or DGX-style configurations and designed for AI training, inference, analytics, and HPC environments where a standard server layout is no longer enough.
Unlike conventional accelerator deployments, this system is built as a GPU-first node. The eight H100 SXM5 GPUs are linked through NVLink and NVSwitch, allowing them to operate as a tightly connected compute platform with low-latency communication and high aggregate bandwidth.
That is one reason the NVIDIA H100 system matters to enterprise buyers. The platform is not only about raw GPU count. It is about how those GPUs work together under real production conditions.
Key Specifications Snapshot
| Feature | Specification |
| GPU Modules | 8x NVIDIA H100 80GB HBM3 SXM5 |
| Total GPU Memory | 640GB HBM3 |
| GPU Memory per Card | 80GB |
| Memory Bandwidth per GPU | Up to 3.35 TB/s |
| GPU Interconnect | 4th Gen NVLink + NVSwitch |
| GPU-to-GPU Bandwidth | Up to 900 GB/s bidirectional |
| CPU Pairing | Dual Intel Xeon or AMD EPYC |
| MIG Support | Up to 7 instances per GPU |
| Cluster Scalability | Up to 256 H100 GPUs |
| GPU Power Draw | 700W per GPU |
| Primary Workloads | LLM training, inference, HPC, analytics |
Target Users and Industries
This platform is built for organizations with sustained compute demand, not occasional experimentation.
Typical users include:
- Enterprise AI teams training or fine-tuning large models
- Research institutions running simulation and scientific computing
- Cloud and hyperscale providers offering GPU-backed services
- Financial, healthcare, and manufacturing firms with complex modeling workloads
- Data center operators building dense AI and HPC clusters
It also fits broader server infrastructure planning for organizations upgrading from older A100-based environments.
Architecture and System Design Analysis
Hopper Architecture and Transformer Engine
The H100 is built on NVIDIA Hopper architecture, which was designed for large AI models, inference-heavy services, and demanding HPC workloads. It improves throughput by combining higher compute density with faster memory movement.
A key feature is the Transformer Engine. This hardware block is tuned for transformer-based models such as GPT-style systems and helps speed up both training and inference with precision formats suited to modern AI workloads.
NVIDIA attributes up to a 9× improvement in AI training throughput to Hopper and the Transformer Engine in supported workloads. That helps explain why the H100 is widely used for production AI infrastructure.
The platform also supports multiple precision formats, including:
- FP64
- FP32
- FP16
- INT8
- FP8
This allows the same system to support AI training, inference, analytics, and scientific computing.
GPU-Centric Design vs Traditional CPU Servers
A traditional server is usually built around the CPU, with GPUs added as accelerators. The H100 SXM platform follows a different model.
It is designed as a GPU-centric node, where the eight GPUs form the core of the system and the CPUs manage coordination, data flow, and host-level tasks.
That approach is useful for large AI workloads because performance depends on more than GPU count. It also depends on:
- Fast GPU-to-GPU communication
- Efficient memory sharing across workloads
- Low-latency data movement inside the node
- Balanced CPU, storage, and network support
For organizations planning long-term AI growth, choosing the right platform early helps avoid expensive redesigns later.
NVLink and NVSwitch Interconnect (900 GB/s)
One of the strongest features of the H100 8x SXM system is its internal interconnect design.
The eight GPUs are linked through fourth-generation NVLink and NVSwitch. This provides up to 900 GB/s of bidirectional bandwidth, allowing the GPUs to communicate at high speed inside one node.
That matters because large AI models often spread work across multiple GPUs. If interconnect speed is weak, added GPUs do not always deliver proportional gains.
The H100 design helps reduce that issue by improving data exchange for:
- Distributed model training
- Multi-GPU inference
- Large batch processing
- HPC simulations with frequent memory exchange
CPU, Networking, and System Integration
The H100 SXM server is usually paired with dual Intel Xeon or AMD EPYC processors. The CPUs manage orchestration, storage access, and system-level tasks, while the GPUs handle the main compute load.
Many enterprise setups also include high-bandwidth InfiniBand or Ethernet networking, making it easier to scale from one node to larger GPU clusters.
Core system components include:
- 8x H100 80GB SXM5 GPUs
- Dual server-class CPUs
- NVSwitch for GPU interconnect
- Enterprise storage and memory
- High-speed networking
It also relies on strong AI storage design to keep training and simulation workloads moving efficiently.
Each H100 SXM GPU includes 80GB of HBM3 and up to 3.35 TB/s of memory bandwidth, roughly 50% higher than the Ampere A100. That increase helps reduce bottlenecks in data-intensive AI training, inference, and simulation workloads.
Performance Benchmark and Capabilities
AI Training Performance (9× vs A100)
The H100 is designed for organizations training large models under tight time and budget pressure. Compared with A100-based systems, NVIDIA reports up to 9× faster AI training throughput in supported scenarios.
That gain does not mean every workload will see the same uplift. Actual results depend on model type, precision mode, software stack, and cluster design. Still, the direction is clear. H100 shortens model training cycles and increases usable throughput for demanding workloads.
For enterprises, this affects deployment timelines. Faster model training means faster iteration on data, model quality, and deployment readiness.

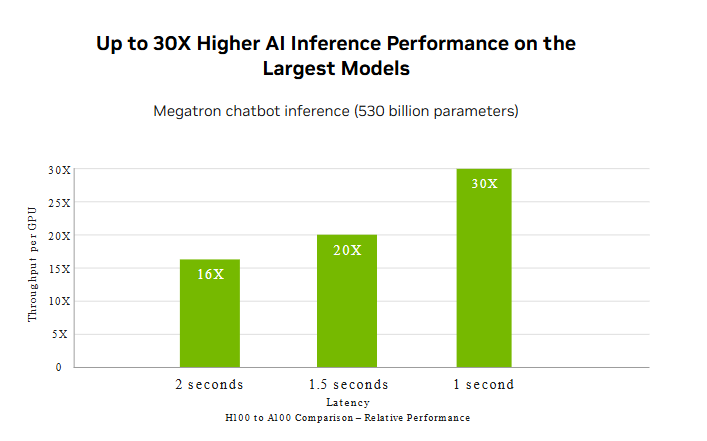

Inference Acceleration (30× for LLMs)
Inference is often where business impact becomes visible. NVIDIA reports up to 30× faster inference performance for large language model workloads compared with A100 in certain conditions.
That kind of uplift matters in production. Lower latency and higher throughput help support:
- Real-time chatbot services
- Code assistants
- Document intelligence systems
- Search augmentation pipelines
- Multi-tenant AI APIs
For companies scaling LLMs, faster inference directly affects user experience, cost control, and service reliability.
Memory Bandwidth and Throughput (>3 TB/s)
Memory bandwidth is one of the strongest features of the H100 SXM platform. Each GPU delivers over 3 TB/s of bandwidth, which helps keep large datasets and model parameters moving without creating the stalls that can slow training or inference.
This is critical for workloads that are memory-bound rather than compute-bound. In those cases, faster memory movement can be as important as more tensor performance.
Real-World Performance in LLM and HPC Workloads
In real deployments, the H100 is used for:
- Fine-tuning large language models
- Running retrieval-augmented generation pipelines
- Serving high-concurrency inference
- Scientific simulation
- Computational fluid dynamics
- Genomics and molecular modeling
- Financial risk analysis
It also benefits from the broader AI deployment stack that many enterprises need when turning hardware into a working production environment.
Memory, Scalability, and Multi-Instance Capabilities
640GB Unified HBM3 Memory Pool
An eight-GPU H100 SXM configuration provides 640GB of aggregate HBM3 memory. This large memory footprint is important for training and inference tasks involving large parameter counts, long context windows, and batch-heavy workloads.
While each GPU still has its own physical memory, the high-speed interconnect fabric helps the node act as a tightly linked memory-rich platform. That reduces friction in workloads that need large active datasets across multiple GPUs.
Multi-Instance GPU (MIG) and Workload Partitioning
The H100 supports Multi-Instance GPU, or MIG, which allows each GPU to be split into smaller secure instances. In practical terms, an eight-GPU server can support up to 56 isolated inference environments when all GPUs are partitioned into seven instances each.
This creates useful deployment options for:
- Mixed workload clusters
- Shared enterprise AI services
- Development and test isolation
- Multi-tenant inference environments
- Higher GPU utilization on smaller models
That efficiency matters because H100 value improves when utilization stays high. The hardware is powerful, but its business case becomes stronger when teams manage scheduling, model packing, and resource sharing well.
Scaling to Multi-Node Clusters (Up to 256 GPUs)
The H100 is built to scale beyond a single server. With NVLink Switch System and high-speed networking, organizations can extend deployments to clusters of up to 256 H100 GPUs for large training jobs and massive HPC runs.
That level of scaling is important for enterprises and research institutions that cannot keep model development inside one node. It also supports phased expansion, which can be part of a broader IT infrastructure strategy instead of a one-time hardware purchase.
Power, Cooling, and Data Center Requirements
Power, Cooling, and Data Center Requirements
Power Consumption (700W per GPU)
Each H100 SXM5 GPU operates at a 700W thermal design power. Across eight GPUs, that means 5.6kW of GPU power alone, before accounting for CPUs, memory, storage, networking, and overhead.
This is one of the most important planning factors. H100 is built for organizations that need production-ready AI performance at scale, but that performance comes with serious power density.

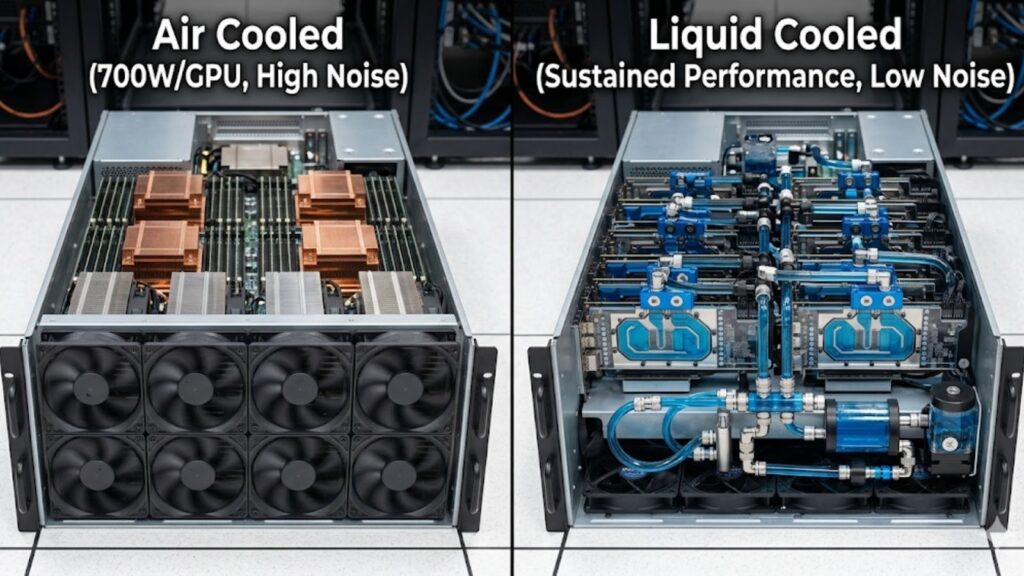

Air Cooling vs Liquid Cooling
Some air-cooled 8U configurations exist, but liquid cooling is often the preferred option for sustained high-density deployment. It helps manage thermals more effectively and lowers the risk of throttling under continuous heavy load.
Air cooling may still fit certain environments, especially where deployment density is modest. However, liquid cooling is usually favored in enterprise and hyperscale settings where uptime and sustained performance matter.
Liquid cooling is often preferred in enterprise and hyperscale environments where uptime and sustained performance matter. That makes cooling system design and AI thermal planning an important part of early infrastructure decisions.
Infrastructure Requirements for Deployment
A successful H100 deployment usually requires:
- High-density rack power delivery
- Strong thermal management
- Fast storage access
- High-throughput networking
- Capacity planning for cluster expansion
- Skilled operations support
Specialized GPU server design is often necessary to avoid underbuilding around the GPUs.
Enterprise Integration and Ecosystem
Integration with DGX and HGX Platforms
H100 is also widely used by cloud and hyperscale providers. That gives enterprises a faster path to capacity when on-prem deployment is not practical right away.
Cloud H100 is often used for:
- Short-term training projects
- Burst inference demand
- Fast testing and validation
- Temporary capacity expansion
On-prem deployment is often the better fit for steady, high-utilization workloads.
Cloud and Hyperscaler Adoption
H100 is widely used by cloud and hyperscale providers, giving enterprises faster access to high-end GPU capacity when on-prem deployment is not practical right away.
Common cloud use cases include:
- Short-term training projects
- Burst inference demand
- Fast testing and validation
- Temporary capacity expansion
For steady, high-utilization workloads, on-prem deployment is often the better long-term fit.
Software Ecosystem (CUDA, RAPIDS, AI Frameworks)
The H100 benefits from a mature software stack, which is a major advantage in enterprise environments. That software support is one reason it fits well into broader AI infrastructure planning for production deployments.
Common tools include:
This broad support helps teams move from infrastructure setup to production use with less friction.
Use Cases and Industry Applications
Use Cases and Industry Applications
Generative AI and LLM Training
The H100 is widely used for training and fine-tuning large language models. Its GPU interconnect, memory bandwidth, and Transformer Engine make it well suited for large-scale model development.
High-Performance Computing (HPC)
The platform also supports HPC workloads such as genomics, simulation, engineering, and financial modeling. Fast memory and multi-GPU scaling are important advantages in these environments.
Data Analytics and Enterprise AI
H100 can accelerate enterprise analytics, large-scale data processing, and model-driven decision systems. It is a strong fit for data-intensive workloads that need consistent performance.
Cloud AI Services and Inference at Scale
Cloud providers and enterprise platforms use H100 for high-throughput inference, especially for AI services that need low latency and reliable scaling.
Competitor Analysis and Comparison
NVIDIA A100 GPU vs H100 (Performance and Architecture)
A100 remains capable for many AI and HPC workloads, but H100 offers stronger performance for modern transformer and LLM use cases. The biggest differences come from Hopper architecture, the Transformer Engine, faster memory, and better inference throughput.
NVIDIA GH200 Grace Hopper Superchip vs H100 (Memory and CPU Integration)
GH200 combines GPU and CPU more tightly through Grace Hopper design. It can be attractive for workloads that benefit from larger coherent memory and closer CPU-GPU integration. H100, however, remains a strong fit for organizations focused on established multi-GPU training and inference nodes.
AMD Instinct MI300X vs H100 (Memory Capacity and Cost Efficiency)
AMD MI300X brings strong memory capacity and can be attractive on price-performance in some deployments. The decision often depends on software stack readiness, framework optimization, and operational familiarity, not hardware specs alone.
Which GPU Is Best for LLM Training and Inference
For many enterprises, H100 remains the safer choice where ecosystem maturity, software compatibility, and operational confidence matter as much as peak performance.
| GPU Platform | Memory | Interconnect / Design | Strengths | Considerations |
| NVIDIA A100 | 80GB HBM2e | NVLink | Proven platform, mature adoption | Lower LLM performance than H100 |
| NVIDIA H100 SXM | 80GB HBM3 | NVLink + NVSwitch | Strong LLM training and inference, mature ecosystem | High power and infrastructure demand |
| AMD MI300X | 192GB HBM3 | High-memory GPU design | Large memory capacity, competitive value | Software alignment varies by environment |
| NVIDIA GH200 | Large coherent memory model | Grace Hopper integration | Tight CPU-GPU integration, advanced memory architecture | Platform choice depends on workload profile |
Pricing, Availability, and ROI Analysis
Cost Breakdown ($200K–$400K+)
A fully configured 8x H100 SXM server typically falls in the $200,000 to $400,000+ range depending on CPU selection, storage, networking, cooling design, and support requirements.
That cost reflects more than the GPUs. It includes the surrounding system needed to keep those GPUs fully usable.
Cloud vs On-Prem Deployment Cost
Cloud H100 access works well for burst demand, testing, and temporary projects. On-prem deployment often becomes more economical when utilization is high and demand is constant.
| Deployment Model | Upfront Cost | Operating Flexibility | Long-Term Cost Profile | Best Fit |
| Cloud H100 | Lower | High | Can rise quickly under constant use | Burst demand, rapid access |
| On-Prem H100 | High | Moderate | Better for sustained heavy workloads | Stable enterprise demand |
Total Cost of Ownership (TCO) vs Performance Gains
Even with a high acquisition cost, H100 can lower effective cost per training run or inference job when utilization stays high. A 3x to 4x practical performance gain over older platforms can improve TCO by shortening job duration and increasing output per rack.
That is why network cost planning should be considered together with GPU investment.
Advantages and Limitations
Key Strengths (Performance, Scalability, Ecosystem)
The main strengths of the H100 8x 80GB SXM Server include:
- High AI training and inference throughput
- Strong memory bandwidth for data-intensive workloads
- Tight multi-GPU communication with NVLink and NVSwitch
- Flexible MIG partitioning
- Mature software ecosystem
- Good fit for enterprise and hyperscale deployment
Challenges (Cost, Power, Infrastructure Complexity)
The main constraints include:
- High purchase cost
- Significant power demand
- Cooling complexity
- Dense rack and networking requirements
- Strong need for operational planning
Future Outlook of AI Infrastructure
Role of H100 in Next-Gen AI Models
H100 will continue to play an important role in next-generation AI systems because many enterprises still need dependable, production-focused infrastructure for model development and inference today.
It is especially relevant for organizations that cannot delay deployment while waiting for the next platform cycle.
Transition Toward GH200 and Beyond
Over time, more buyers will evaluate GH200 and later systems for memory-rich architectures and tighter CPU-GPU integration. Even so, H100 remains a practical platform in the current market because it is widely deployed, broadly supported, and operationally understood.
Need a Scalable NVIDIA H100 Infrastructure Solution?
Looking to deploy high-performance AI infrastructure with NVIDIA H100 systems? Catalyst Data Solutions Inc can help you plan, source, and implement scalable GPU solutions optimized for AI training, inference, and HPC workloads.
FAQs
What makes H100 better than A100?
H100 offers faster training, faster LLM inference, higher memory bandwidth, and Hopper-based features like the Transformer Engine. It is better suited for modern AI workloads at scale.
Is H100 suitable for small businesses?
Usually not for on-prem deployment. The cost and infrastructure needs are high, so cloud access is often the more practical option.
How much power does an H100 server consume?
An 8-GPU H100 SXM server uses about 5.6kW for GPUs alone. Total system power will be higher once CPUs, storage, and networking are included.
Can H100 handle real-time AI inference?
Yes. It is commonly used for low-latency, high-throughput inference in production AI environments.
What are alternatives to H100?
Common alternatives include NVIDIA A100, NVIDIA GH200, and AMD Instinct MI300X.
Is cloud H100 better than on-prem deployment?
Cloud is better for flexibility. On-prem is often better for steady, high-utilization workloads.
